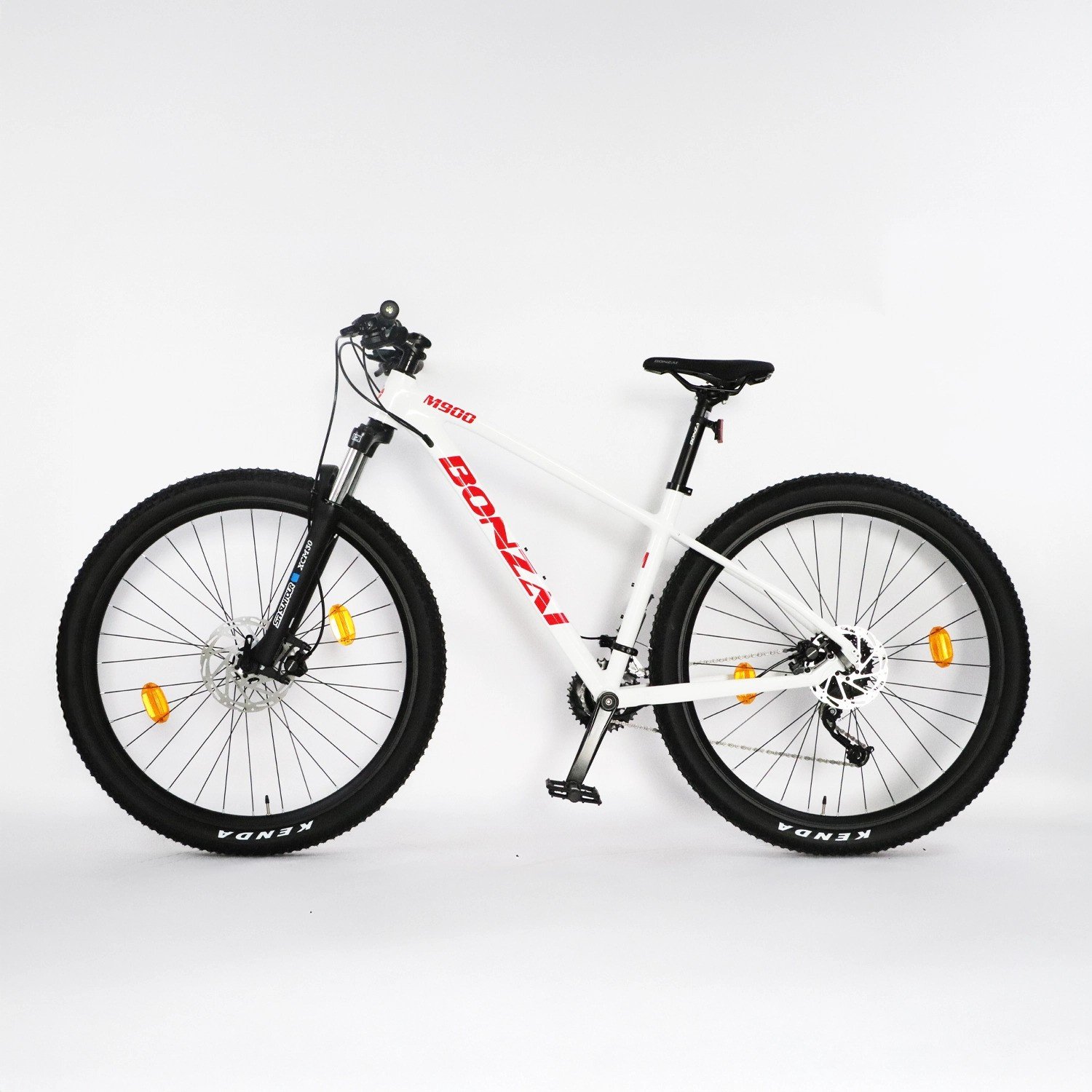

Bonzai M900
₹47,490
Select options to see SKU
Select options to see availability
Buy now opens your cart. Checkout is not available yet.
Product details
Technical Specifications
Frame & Fork
- Frame
- Smooth weld, Aluminum Alloy 6061, tapered headtube, dropper post ready, QR
- Fork
- Sr Suntour XCM30, 100MM travel with hydraulic lockout
- Frame Colour
- Matt Black / Pearl White
- Headset
- Sealed bearing headset, 1-1/8” 44×55
Wheels & Tyres
- Rims
- Aluminum alloy double wall, 32H, inner width 25mm
- Wheel Size
- 29 inch
- Tire & Tube
- Kenda Slant Six K1080, 29×2.2” 30TPI
- F/R Hub
- Sealed bearing hub MY607BQ, 32H
- Spokes
- Stainless Steel, G14
Drivetrain & Gearing
- Shifter
- Shimano Alivio M3100 2×9 shifter
- Crank
- Shimano HYPERDRIVE MTB Crankset 2×9-speed, 36-22T
- Cassette
- Shimano CS-HG200-9, 11-36T
- Front Derailleur
- Shimano Alivio M3120, 2 Speed
- Rear Derailleur
- Shimano Alivio M3100, 9 Speed
- Bottom Bracket
- Shimano BB-UN101
- Chain
- KMC Z-9
Brakes
- Brake Lever
- Tektro HD- M275
- Brake Caliper
- Tektro HD-M275 F/R Hydraulic disc brakes
- Rotor
- Tektro rotor, 180mm front and 160mm Rear
Handlebar, Stem & Saddle
- Pedals
- Nylon, VP-536
- Saddle
- Light weight Saddle
- Seat Post
- Alloy, 30.4×2.4Tx300mm with bolt
- Handlebar
- Flat Alloy 31.8mm, 9mm backsweep, 760mm length
- Stem
- Alloy Stem with 7°rise/drop, 60mm length
- Grips
- Bonzai, Silicone Grips
Weight & Dimensions
- Weight
- 14.4 kilograms
- Max Weight
- 125 kilograms (including bike weight)
Frameset
- Decal
- Water Decal
Tool Kit
Reflectors
Sizing & Fit
Available sizes
M, L
Sizing details
- Ideal Height
- M(165-175cm), L(175-185cm)
Fit guidance
Frame · M(17 inch) · L(19 inch)
Rider Height ( In CMS) · 165-175 · 175-185
Seat Tube (ST) · 432mm · 483mm
Effective Top Tube (TT) · 588.1mm · 605.5mm
Chain Stay Length (CS) · 455mm · 455mm
Head Tube Angle (HTA) · 68 deg · 68 deg
Seat Tube Angle (STA) · 72.5 deg · 72.5 deg
Bottom Bracket Drop (BD) · 70mm · 70mm
Heat Tube (HT) · 100mm · 110mm
Fork Length (FL) · 505mm · 505mm
Reach(R) · 393.3mm · 407mm
Stack (S) · 615mm · 625mm
Wheel Base (WB) · 1105mm · 1123.2mm
Stand Over Height (SH) · 729.1mm · 778.3mm
Warranty & Support
The supplied Bonzai policy covers bike frames and non-suspension forks only. It lists ten years for alloy frames and five years for carbon, steel and dual-suspension frames; the applicable term for this bike depends on its verified frame construction. Paint, stickers and listed wear items are excluded, and original ownership, registration and authorised purchase are required.
Coverage depends on frame material and the conditions below. The supplied document lists modification and abnormal-use clauses under “Warranty is valid only for”; please confirm those clauses with Yellow Jersey before relying on them. For warranty support on Bonzai M900, contact Yellow Jersey with your original proof of purchase. Coverage is subject to the applicable product, ownership, registration and regional conditions; normal wear, misuse and accidental damage are excluded where stated in the full policy.
